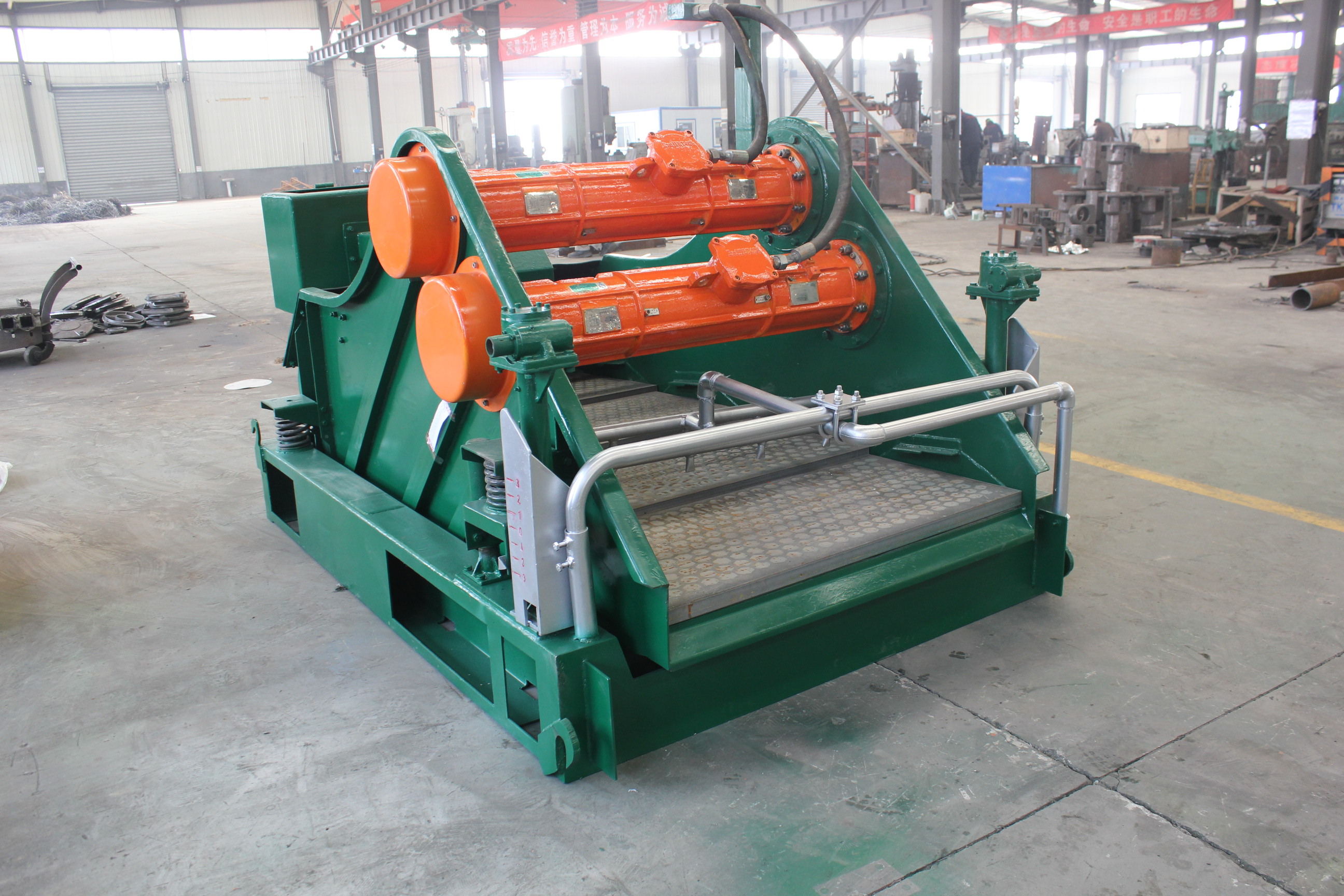

      TCZSP系列直線(平動橢圓)雙軌跡振動篩

      時間:2016-05-30 08:49 作者:宏宇升降機 點擊:次
       我公司生產的TCZSP直線(平動橢圓)雙軌跡振動篩是一種用于處理多種液體固相顆粒的專用設備,對于清除液體中固相顆粒、加大處理量、節能降耗有很重要的作用。在綜合國內外振動篩優缺點的基礎上,設計而出的??筛鶕?jù)現場的實際情況調整振動篩的運動軌跡使振動篩達到最佳的工作狀態,有效的防止了糊篩、堵篩、跑漿等現象,適用于各類泥漿凈化系統。

      I produced TCZSP double track vibrating screen is a liquid for treating a variety of solid particles of special equipment for removing liquid solid phase particles, increasing processing capacity, energy consumption has a very important role. On the basis of the advantages and disadvantages of the shaker at home and abroad, the design out of. Vibrating screen can be adjusted according to the actual situation of the scene of the trajectory of the vibrating sieve to achieve the best working conditions, effectively preventing the paste sieve, sieve blocking, running pulp phenomenon, applicable to all types of mud purification system.

      技術參數



      technical parameter

      型號

      Model

      TCZSP X3-1

      TCZSP X3-2

      TCZSP X3-3

      拋擲指數
      Throwing index

      5-7.8g

      5-7.8g

      5-7.8g

      振幅
       amplitude

      5-8mm

      5-8mm

      5-8mm

      處理量
      Processing

      50-80L/S

      120-160L/S

      160-240L/S

      篩網面積
      Screen area

      2.75

      5.5

      8.25

      激振轉速
      Vibration speed

      1420rpm

      1420rpm

      1420rpm

      激振力
      Vibration force

      2x30kn/1x20kn

      4x30kn/2x20kn

      6x30kn/3x20kn

      電機功率
      Motor Power

      2x1.5kw/1x0.8kw

      4x1.5kw2x0.8kw

      4x1.5kw/3x0.8kw

      外形尺寸
      (長xx高)
       Overall dimensions

      (length x width x height)

      3000x1900x1450mm

      3000x3795x1450mm

      3000x5990x1450mm

      重量kg

      Weightkg

      1750kg

      3470kg

      5200kg
